22 Inch 100W OSRAM LED Light Bar – EMC Combo Beam
The 22 Inch 100W OSRAM LED Light Bar TH-MT34100S-EMC is a slim single row auxiliary lighting solution designed for trucks, SUVs, ATVs, UTVs, off-road vehicles, agricultural machinery and construction equipment. Its compact straight housing and spot-flood combo beam provide dependable long-distance visibility and wide-area illumination for night driving and demanding outdoor work.
Equipped with 20 high-performance 5W P8 OSRAM LEDs, this 100W LED light bar delivers 10,880 lumens of clear 6000–6500K white light. The integrated EMC design helps reduce electromagnetic interference with vehicle electronic systems. A wide 9–60V DC input, IP67 waterproof protection, die-cast aluminum housing, polycarbonate lens and adjustable side-mounting brackets support reliable operation in demanding environments.
Product certification
22 Inch 100W OSRAM LED Light Bar Features
- 10,880LM High-Performance Output: The TH-MT34100S-EMC features 20 high-performance 5W P8 OSRAM LEDs and produces up to 10,880 lumens of clear 6000–6500K white illumination. It provides dependable visibility for night driving, off-road travel and professional outdoor work.
- Spot and Flood Combo Beam: The integrated combo beam combines concentrated long-distance lighting with wider close-range coverage. This balanced beam pattern is suitable for off-road driving, roadside work, agricultural operations, construction equipment and commercial vehicles.
- Integrated EMC Design: The built-in electromagnetic compatibility design helps reduce interference with vehicle radios and other electronic systems. This makes the 22 Inch 100W OSRAM LED Light Bar a reliable option for vehicles fitted with multiple electrical and communication devices.

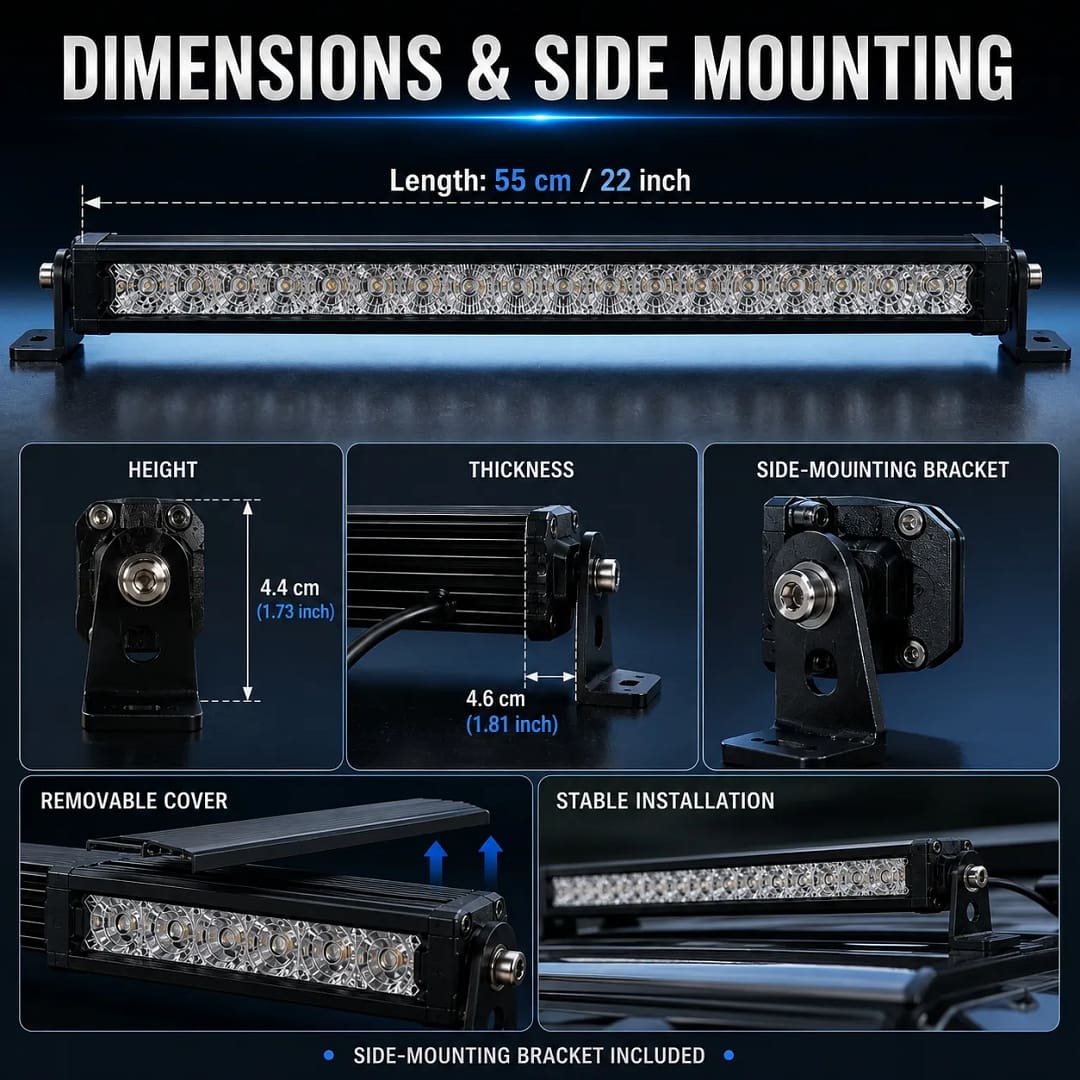

- Slim Housing with Removable Face Cover: The compact single row housing measures approximately 4.4cm in height and 4.6cm in thickness. Its removable face cover supports convenient maintenance and gives professional buyers greater flexibility for product customization.

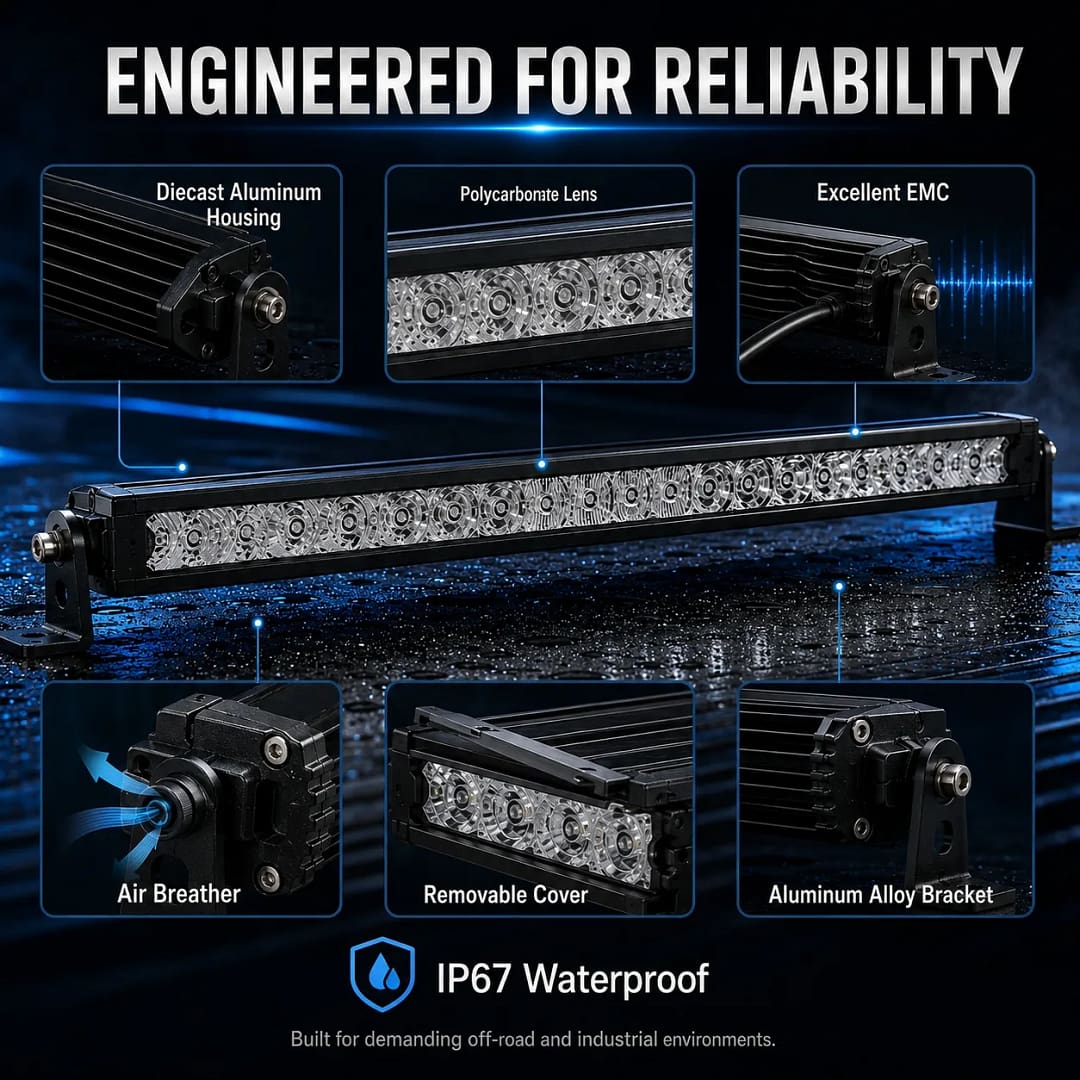

- Durable IP67 Construction: The die-cast aluminum housing provides strength and efficient heat dissipation, while the polycarbonate lens protects the internal LEDs. IP67 waterproof protection, 9–60V DC compatibility and adjustable aluminum alloy side-mounting brackets support reliable installation on trucks, SUVs, ATVs, UTVs and commercial equipment. TEEHON also provides OEM/ODM, custom branding, packaging and bulk-order services.
ALL PRODUCTS
Choose Your Vehicles Type

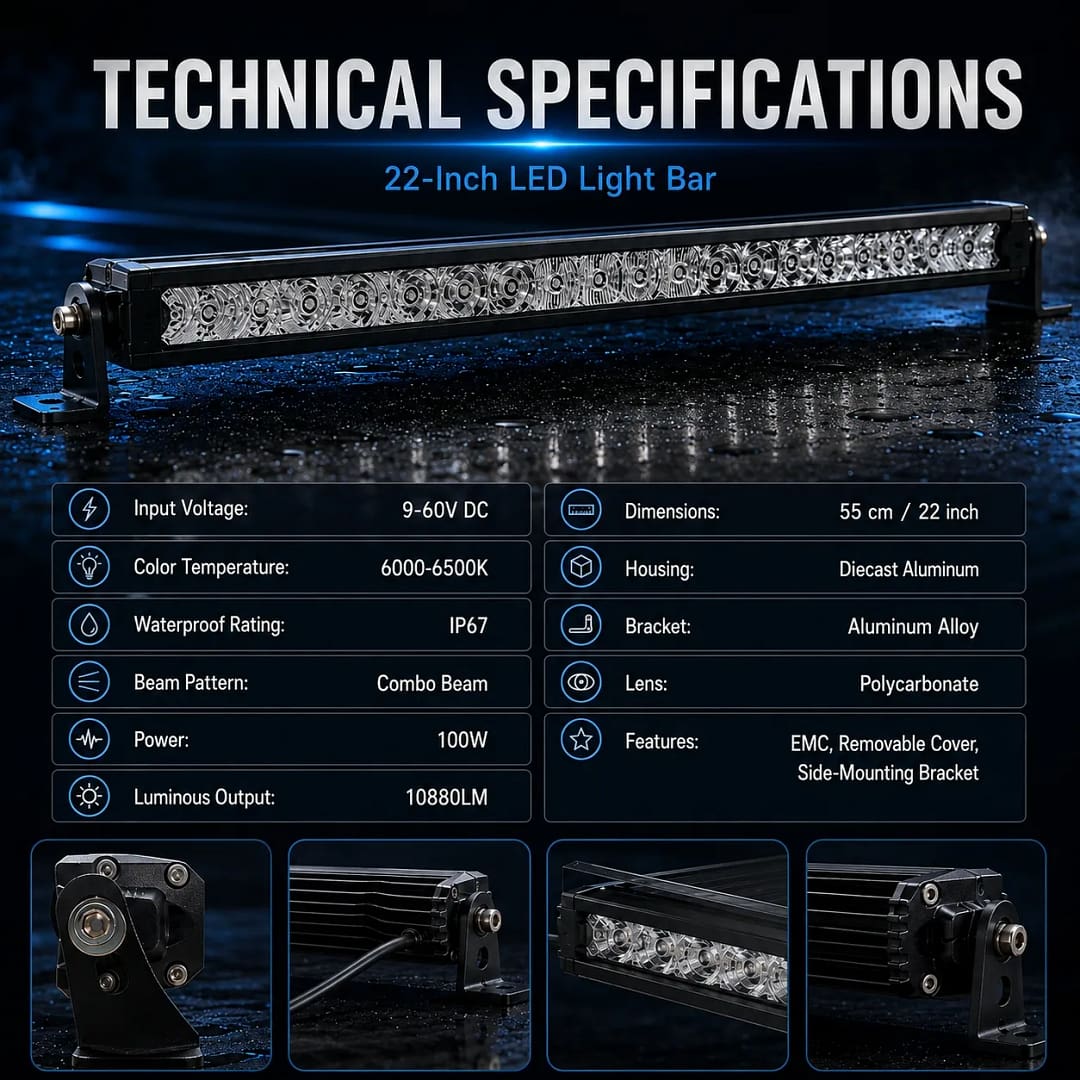

Product Parameters
| Brand Name | TEEHON |
| Place of Origin | Guangdong, China |
| Model Number | TH-MT34100S-EMC |
| Warranty | 1 Year |
| Product Type | Slim Single Row LED Light Bar |
| Power | 100W |
| Available Wattage Series | 50W / 100W / 150W / 200W / 250W |
| LEDs | 20 pcs × 5W P8 OSRAM LEDs |
| Luminous Flux | 10,880LM |
| Working Voltage | 9–60V DC |
| Color Temperature | 6000–6500K |
| Waterproof Rating | IP67 |
| Beam Pattern | Spot + Flood Combo Beam |
| EMC Design | Yes |
| Housing Material | Die-Cast Aluminum |
| Lens Material | Polycarbonate Lens |
| Mounting Bracket | Aluminum Alloy Side-Mounting Brackets |
| Face Cover | Removable Face Cover |
| Product Length | 22 in / 55 cm |
| Body Size | 4.4(H) × 4.6(T) cm |
