26 Inch 72W 5D LED Light Bar – Ultra-Slim Single Row
The 26 Inch 72W 5D LED Light Bar TH-HT0972C-5D is an ultra-slim single row auxiliary light designed for trucks, SUVs, ATVs, UTVs, off-road vehicles, agricultural machinery and construction equipment. Its compact 2.6cm-high housing is suitable for vehicles with limited mounting space while providing dependable illumination for night driving and outdoor work.
Equipped with 24 high-performance 3W LEDs and precision 5D optical lenses, this LED light bar delivers 4,800 lumens of clear 6000K white light. Spot, flood and combo beam patterns are available for different lighting requirements. The wide 9–60V DC input, die-cast aluminum housing, polycarbonate lens and IP67/IP68 protection support reliable performance in demanding outdoor environments.
Product certification
26 Inch 72W 5D LED Light Bar Features

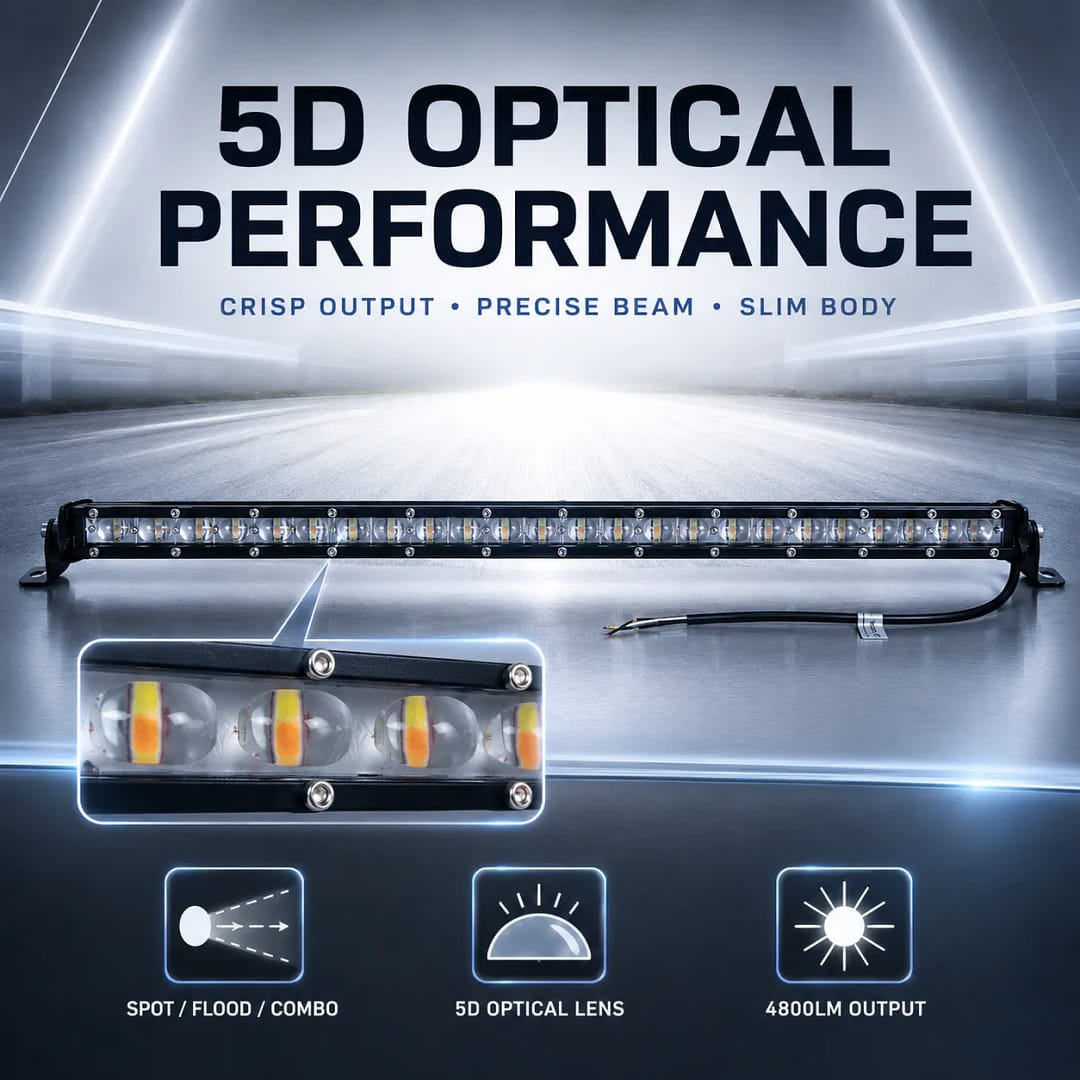

- 5D Optical Lens and 4,800LM Output: The TH-HT0972C-5D uses 24 high-performance 3W LEDs with precision 5D optical lenses to deliver 4,800 lumens of clear 6000K white illumination. The optical design helps collect and distribute light efficiently for improved visibility during night driving, off-road travel and outdoor work.
- Ultra-Slim Single Row Design: With a body height of only 2.6cm, this 26 inch LED light bar provides a low-profile installation solution for vehicles with limited mounting space. Its slim straight housing integrates neatly with trucks, SUVs, ATVs, UTVs, off-road vehicles and commercial equipment.
- Spot, Flood and Combo Beam Options: The spot beam provides concentrated long-distance visibility, while the flood beam delivers wider close-range illumination. The combo beam balances lighting distance and coverage, making the light bar suitable for driving, construction, agricultural and utility applications.
- Wide 9–60V DC Compatibility: The 26 Inch 72W 5D LED Light Bar supports a wide operating voltage range for different vehicle electrical systems. It can be used on trucks, SUVs, ATVs, UTVs, agricultural machinery, construction equipment and other professional or commercial vehicles.

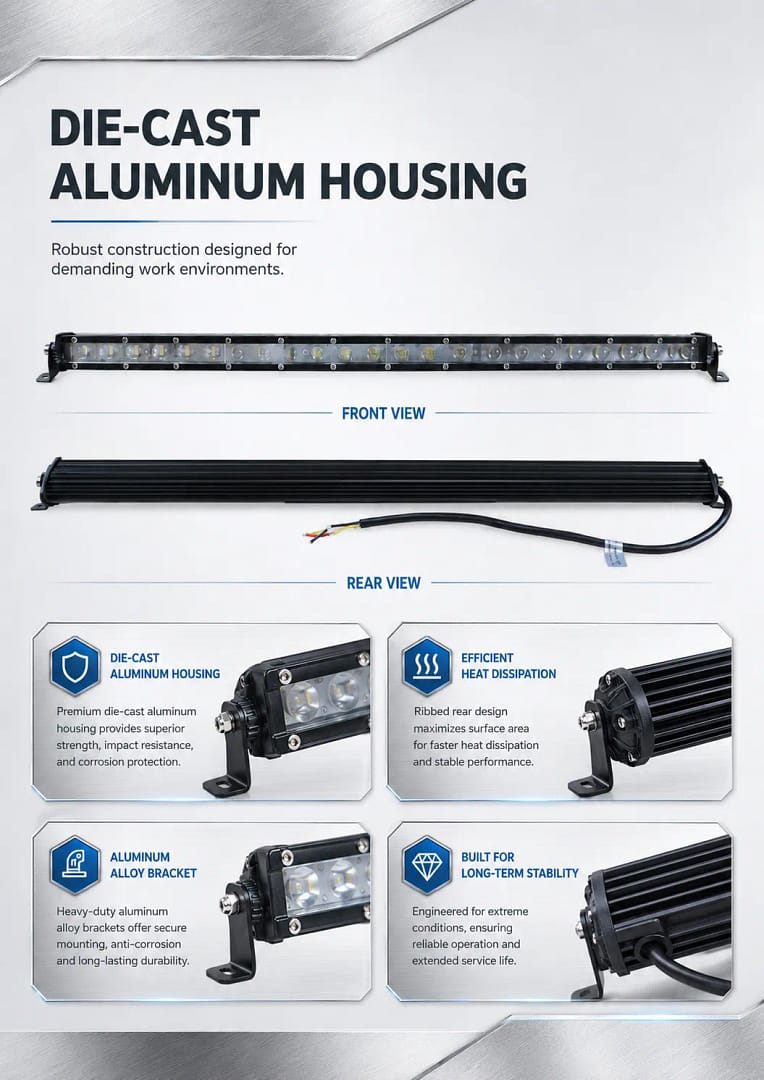

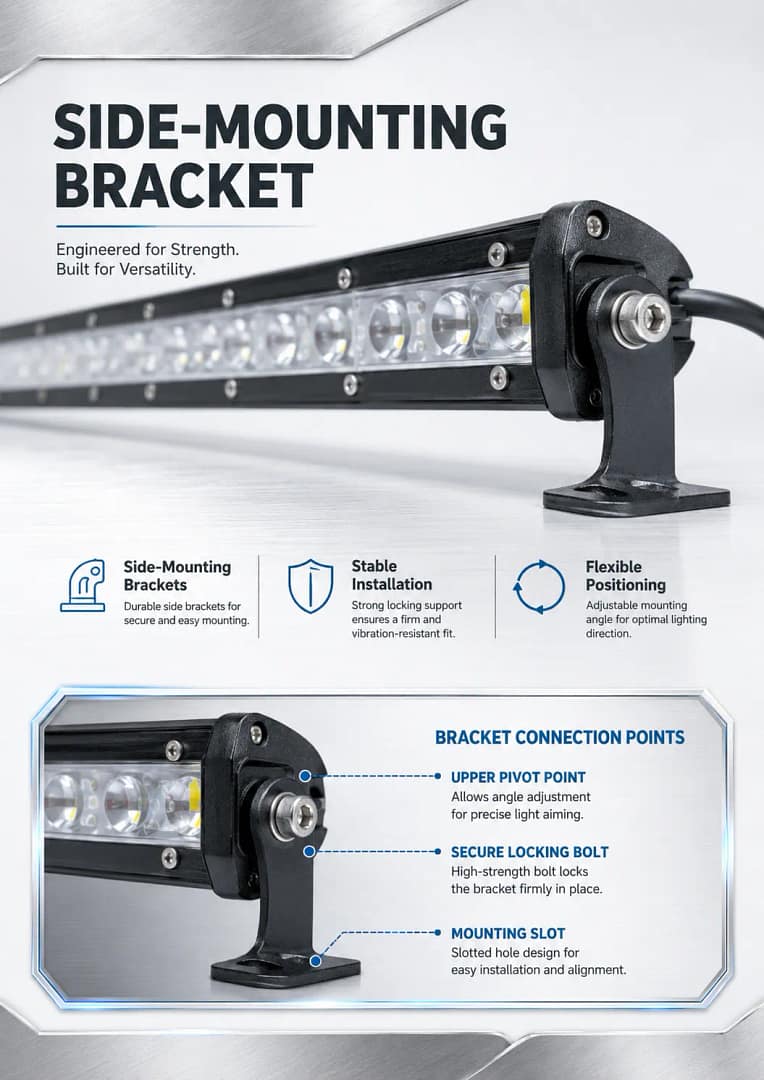

- IP67/IP68 Protection and Durable Housing: The die-cast aluminum housing provides strength and efficient heat dissipation, while the polycarbonate lens protects the internal LEDs and optical components. IP67/IP68 waterproof protection supports dependable outdoor operation, and adjustable side-mounting brackets provide flexible installation. TEEHON also supports OEM/ODM services, custom branding, packaging and bulk orders.
ALL PRODUCTS
Choose Your Vehicles Type
Product Parameters
| Brand Name | TEEHON |
| Place of Origin | Guangdong, China |
| Model Number | TH-HT0972C-5D |
| Warranty | 1 Year |
| Product Type | Ultra-Slim Single Row 5D LED Light Bar |
| Power | 72W |
| Available Wattage Series | 18W / 27W / 36W / 54W / 72W / 90W / 108W / 126W / 144W |
| LEDs | 24 pcs × 3W LEDs |
| Optical Lens | 5D Optical Lens |
| Luminous Flux | 4,800LM |
| Working Voltage | 9–60V DC |
| Color Temperature | 6000K |

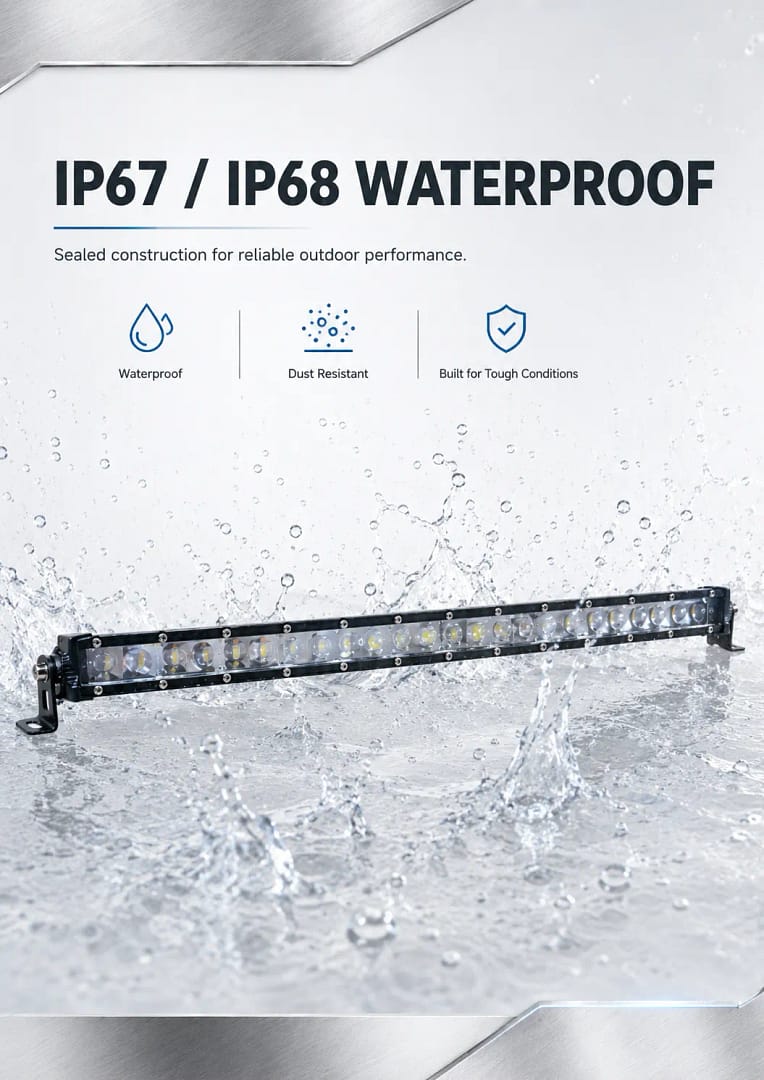

| Waterproof Rating | IP67 / IP68 |
| Beam Pattern | Spot / Flood / Combo Optional |
| Housing Material | Die-Cast Aluminum |
| Lens Material | Polycarbonate Lens |
| Mounting Bracket | Aluminum Alloy Side-Mounting Brackets |
| Product Length | 26 in / 65.3 cm |

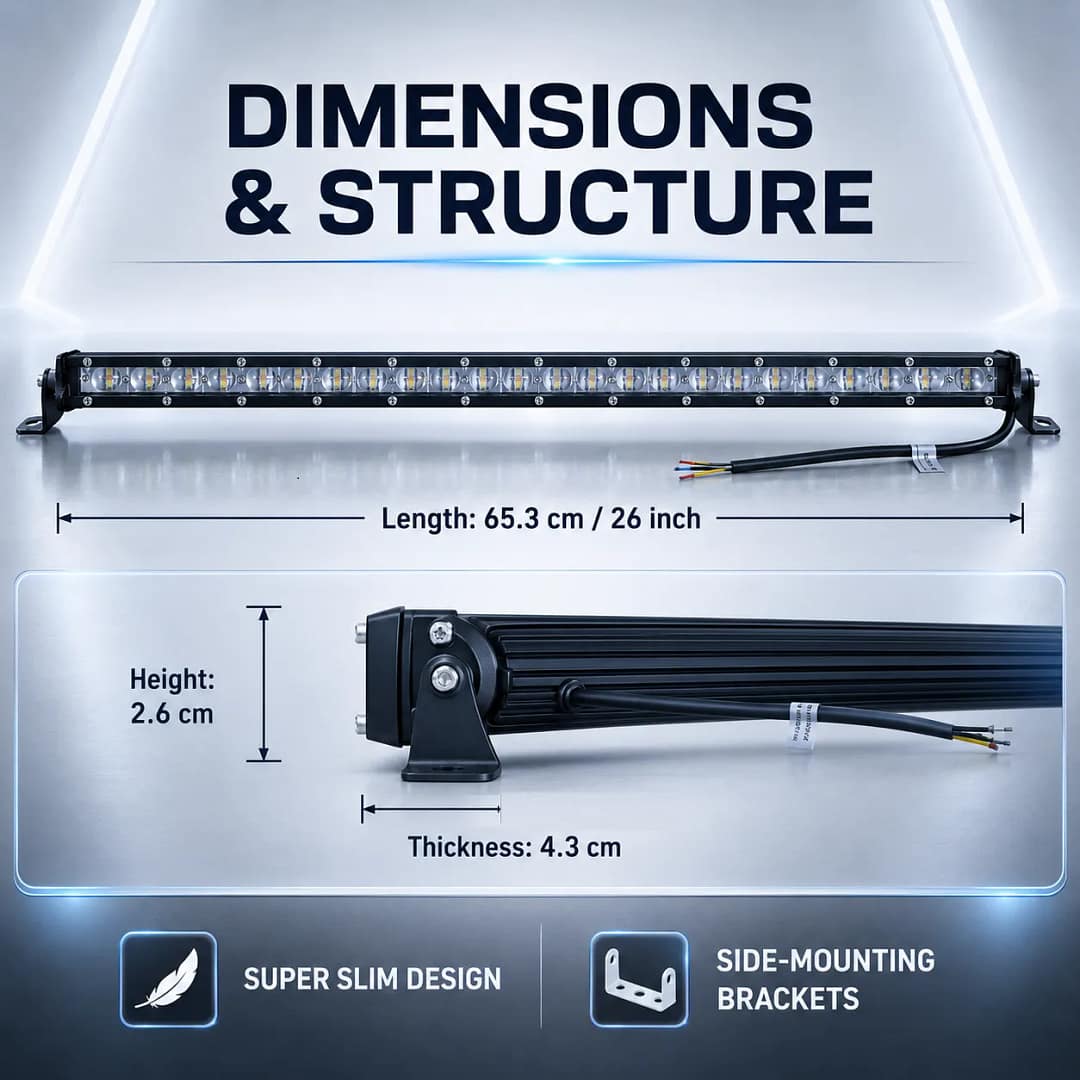

| Body Size | 2.6(H) × 4.3(T) cm |
