8 Inch 30W 4D LED Light Bar – Slim Single Row
The 8 Inch 30W 4D LED Light Bar TH-GT0530C-L is a compact single row auxiliary light designed for off-road vehicles, trucks, SUVs, ATVs, UTVs, agricultural machinery and construction equipment. Its slim housing and efficient 4D optical lenses provide dependable illumination without requiring excessive mounting space.
Equipped with six 5W CREE LEDs, this 30W LED light bar delivers 2,160 lumens of clear 6000K white light. Spot, flood and combo beam patterns are available to meet different driving and working requirements. The wide 9–60V DC input, die-cast aluminum housing, polycarbonate lens and IP67/IP68 waterproof protection support reliable operation in demanding outdoor environments.
Product certification
8 Inch 30W 4D LED Light Bar Features
- High-Performance 4D Optical Lenses: The TH-GT0530C-L uses six 5W CREE LEDs with efficient 4D optical lenses to produce 2,160 lumens of clear illumination. The specially designed lenses help improve light collection and distribution, providing better visibility for night driving, off-road travel and outdoor work.

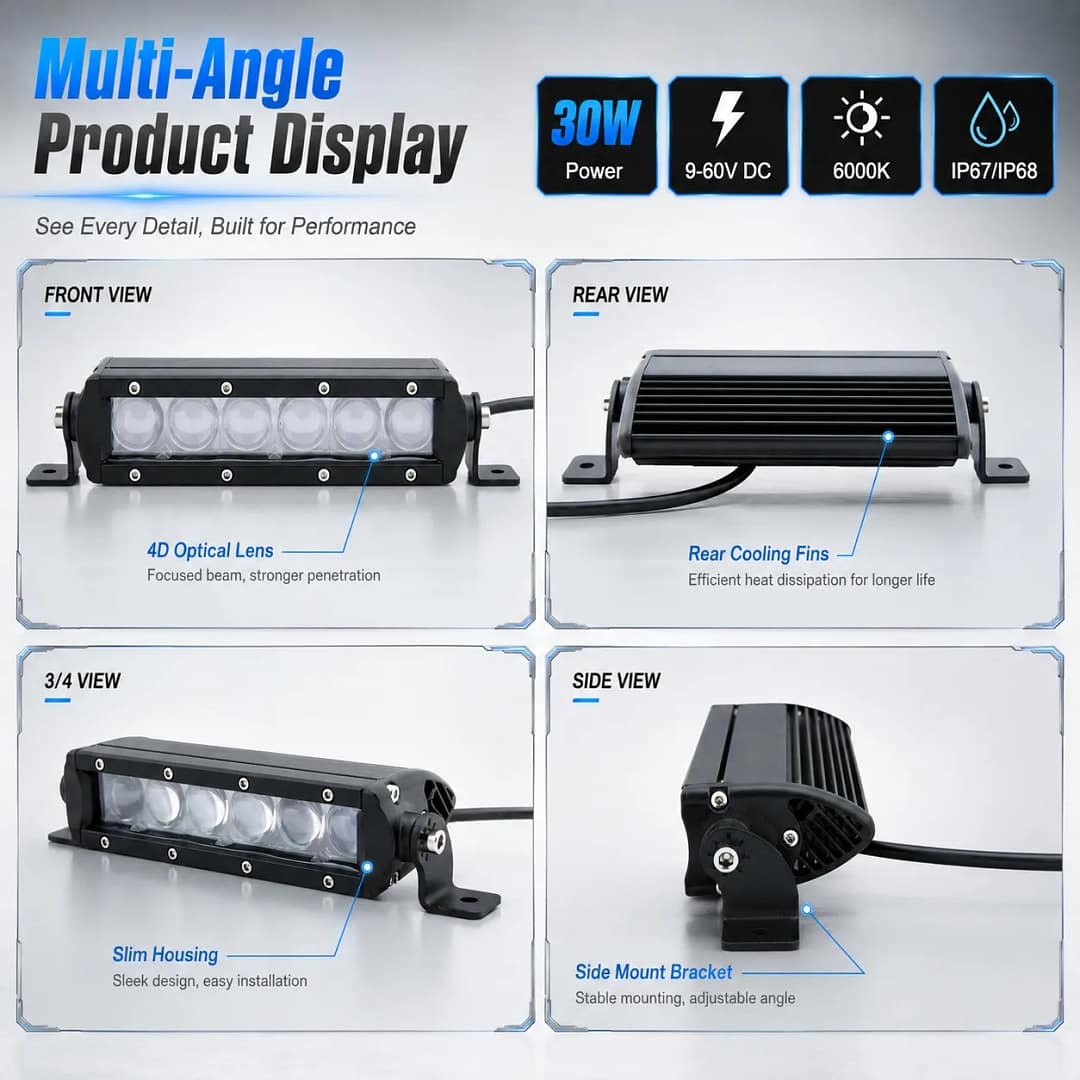

- Slim Single Row Construction: This 8 inch LED light bar features a compact single row structure that is suitable for vehicles with limited installation space. Its low-profile appearance integrates neatly with trucks, SUVs, ATVs, UTVs, off-road vehicles and various commercial or utility vehicles.

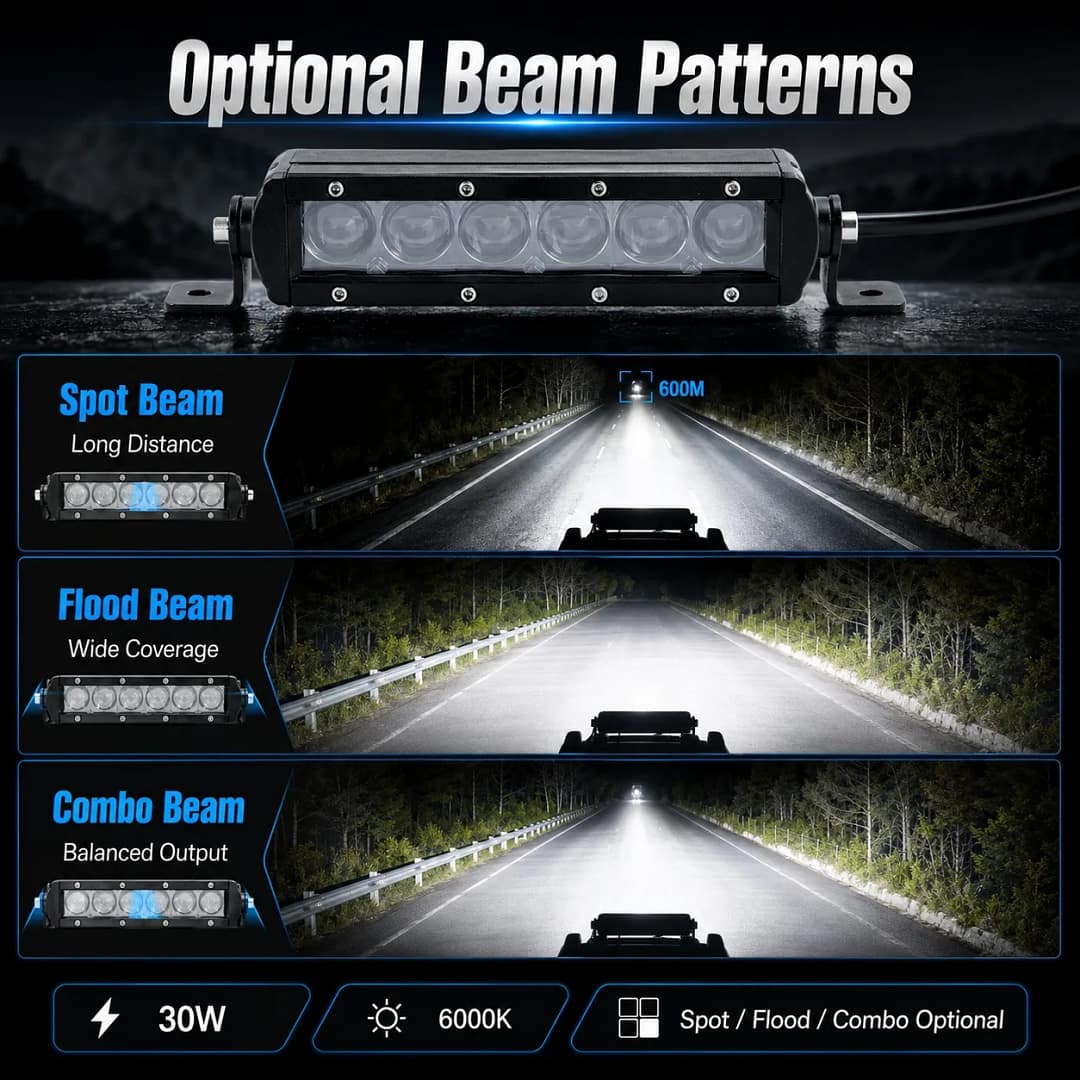

- Spot, Flood and Combo Beam Options: Different beam patterns are available for different applications. The spot beam provides concentrated long-distance visibility, the flood beam offers wider close-range coverage, and the combo beam combines distance and width for versatile off-road driving and work-site illumination.
- Wide 9–60V DC Compatibility: The wide operating voltage range supports multiple vehicle electrical systems and helps professional buyers cover more applications with one product series. This 8 Inch 30W 4D LED Light Bar is suitable for trucks, SUVs, ATVs, UTVs, agricultural machinery, construction equipment and other commercial vehicles.

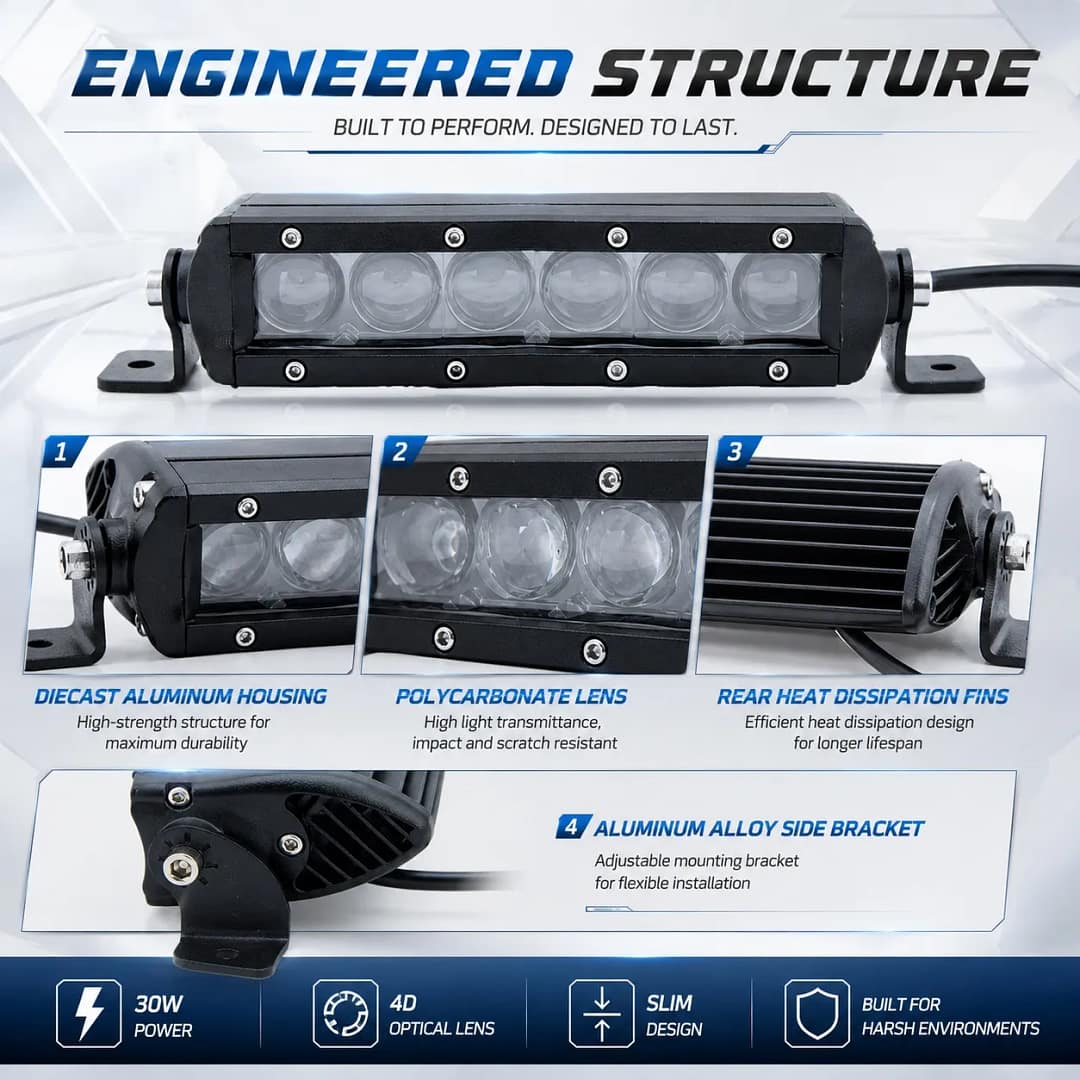

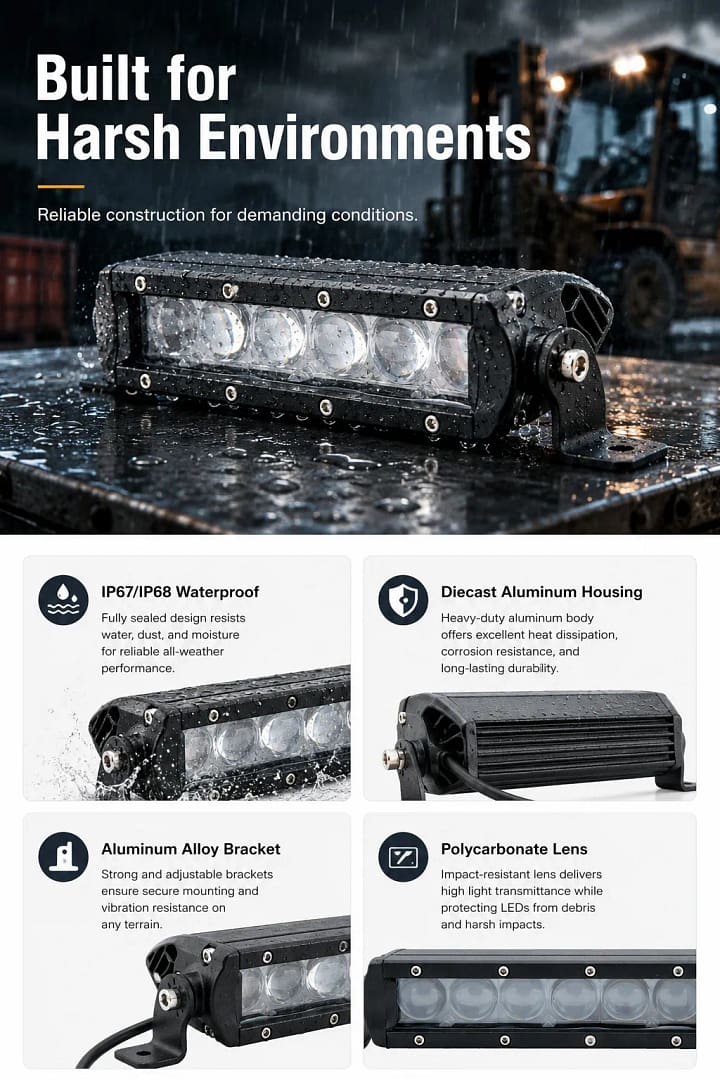

- Durable Protection and Flexible Installation: The die-cast aluminum housing provides strength and efficient heat dissipation, while the polycarbonate lens protects the internal optical components. IP67/IP68 waterproof protection supports dependable outdoor operation, and optional long or short aluminum alloy side-mounting brackets provide flexible installation. TEEHON also supports OEM/ODM services, custom branding, packaging and bulk orders.
ALL PRODUCTS
Choose Your Vehicles Type
Product Parameters
| Brand Name | TEEHON |
| Place of Origin | Guangdong, China |
| Model Number | TH-GT0530C-L |
| Warranty | 1 Year |
| Product Type | Slim Single Row 4D LED Light Bar |
| Power | 30W |
| Available Wattage Series | 30W / 50W / 60W / 80W / 90W / 100W / 120W / 150W / 200W / 250W |
| LEDs | 6 pcs × 5W CREE LEDs |
| Optical Lens | 4D Optical Lens |
| Luminous Flux | 2,160LM |
| Working Voltage | 9–60V DC |
| Color Temperature | 6000K |
| Waterproof Rating | IP67 / IP68 |
| Beam Pattern | Spot / Flood / Combo Optional |
| Housing Material | Die-Cast Aluminum |
| Lens Material | Polycarbonate Lens |

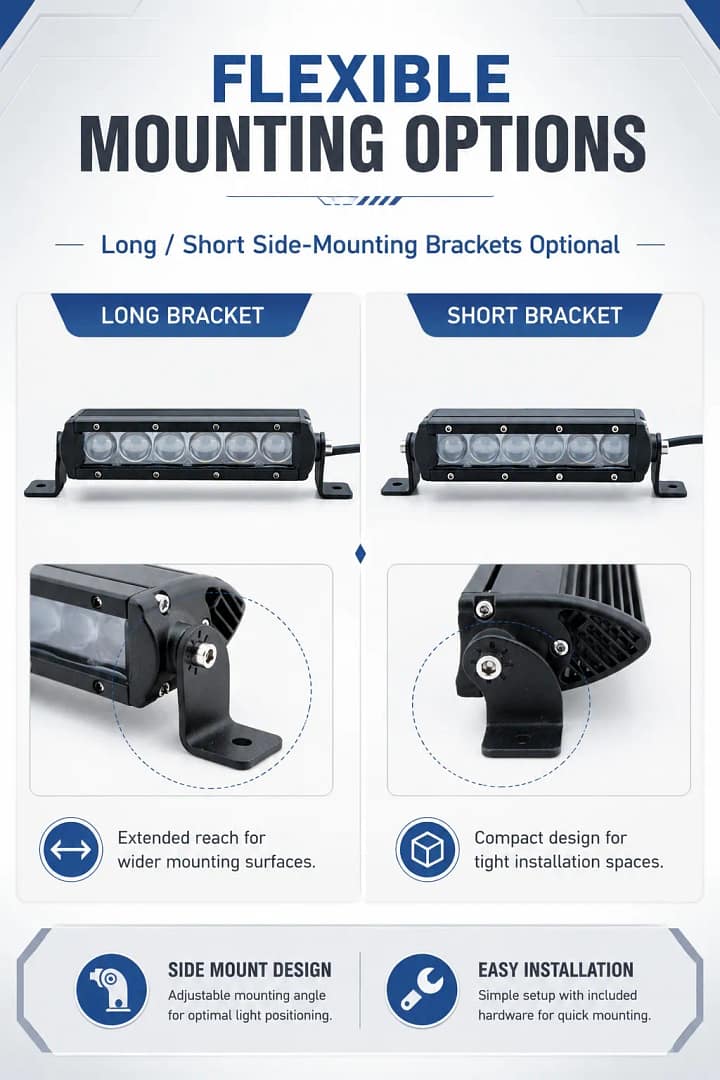

| Mounting Bracket | Optional Long or Short Aluminum Alloy Side-Mounting Brackets |
| Product Length | 8 in / 19.3 cm |
| Body Size | 4.3(H) × 8(T) cm |
